Transparency Trend

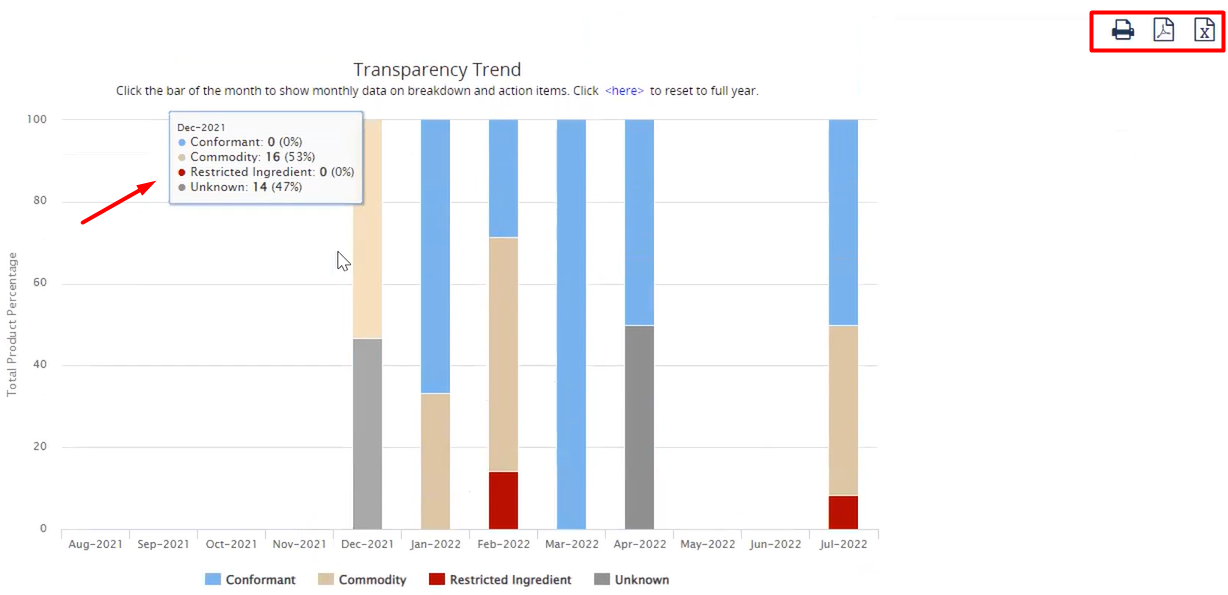

The Dashboards>Chemical>Transparency Trend tab shows the trend of Identified and Unknown Products, Product Breakdown and its details, and Action Items that can be sorted out through the filters.

Note that the default view of the page shows the aggregated view. Below is an explanation of the page view.
Aggregated - This view shows the 12-month record of products from the beginning of upload.  Data are shown from the range of month. (Default view)
Monthly - This view shows the data until the selected month only. Click the corresponding bar to view the monthly data breakdown and action items.

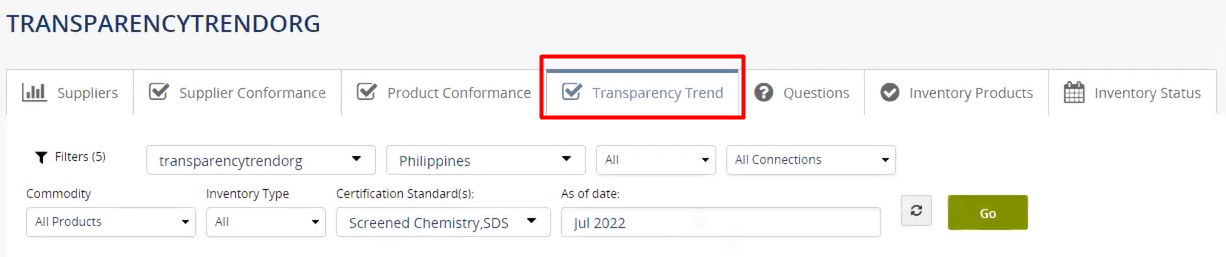

Click  to filter the Transparency Trend view.
Remember the selected Certification Standard reflects the data of the page.



Use the functionalities in the red box to download data through print, pdf, and/or excel.

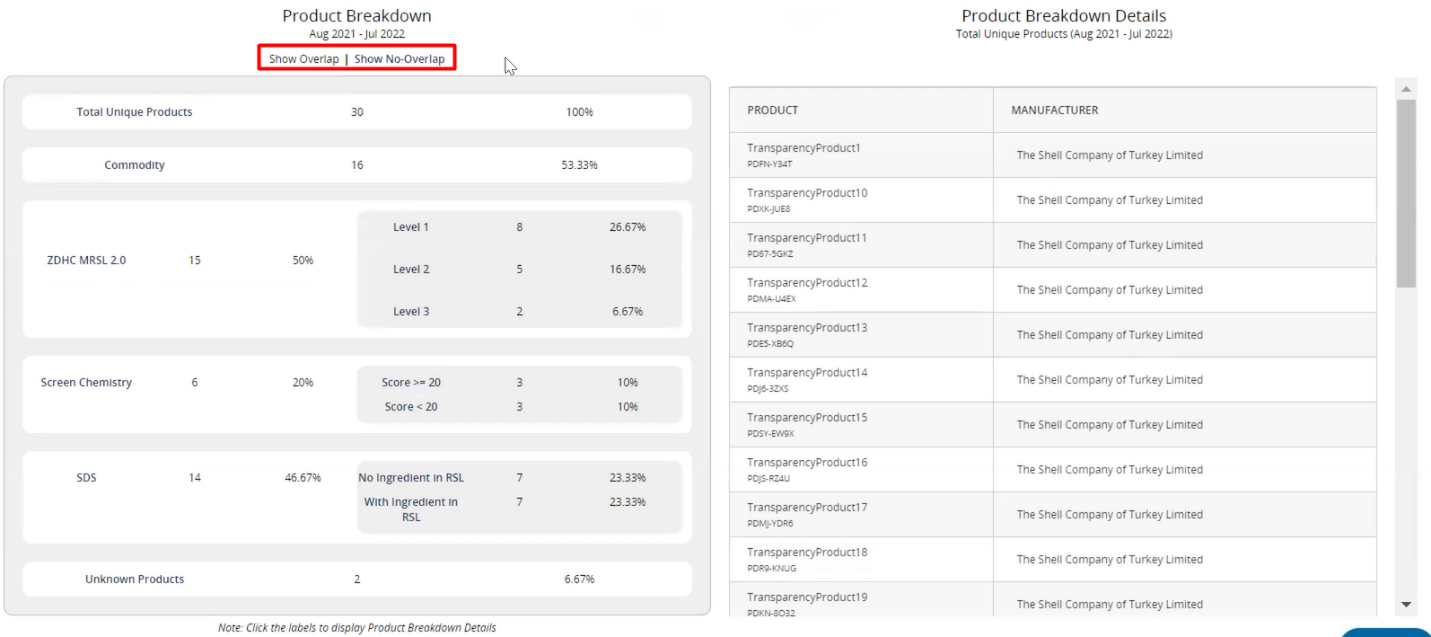

Below is an example of the table view of the Product Breakdown. 
To view the pie chart, click Show No-Overlap.



Show Overlap      -  Products are counted in all categories.
Show No-Overlap - Products are counted based on the hierarchy/ priority below.
                                 1.Commodity
                                 2. MRSL 2.0
                                 3. Screened Chemistry
                                 4. SDS

Below is a pie chart of Product Breakdown's Show No-Overlap.

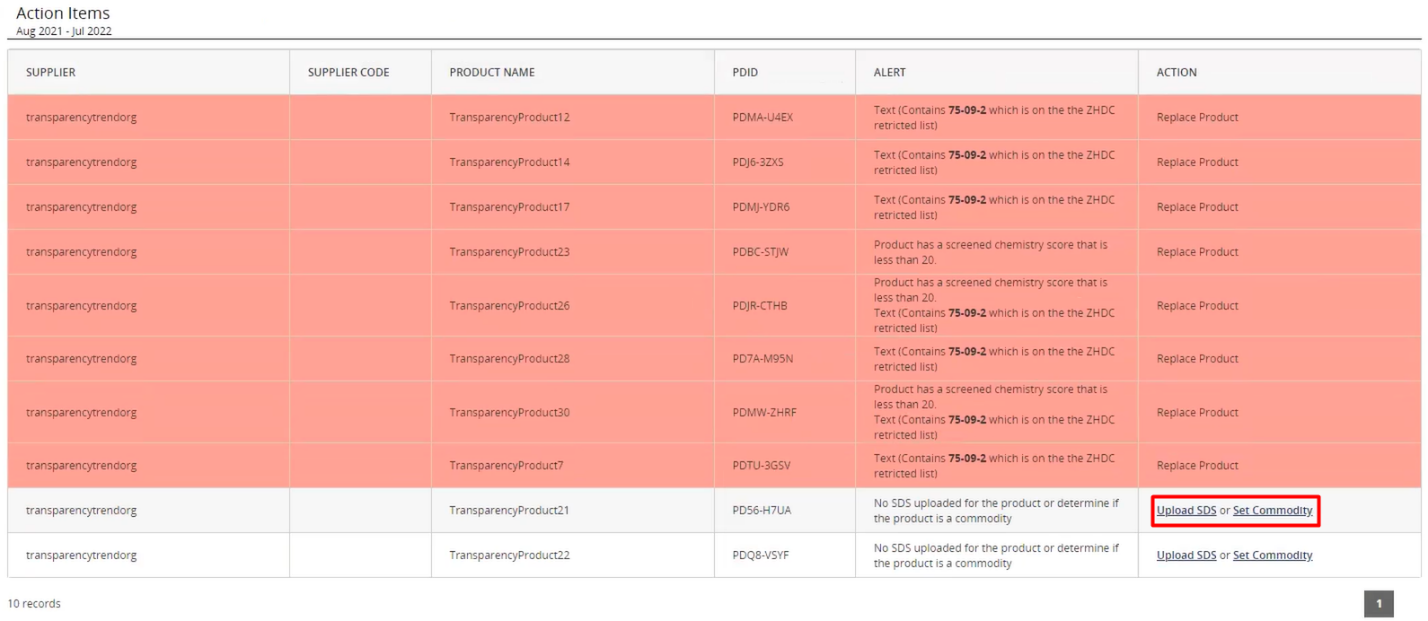

As you scroll down the page, the Action Items show the products that are unknown and with a restricted ingredient. 

• Unknown - Total Number of Products that are not tracked as a commodity, Certificate, or SDS

• Registered Ingredient - Total Number of Products with an MRSL ingredient listed on the SDS or Chemical Score less than 20N

The table shows the Supplier, Supplier Code, Product Name, PDID, Alert, and the Action needed for the product.

The ACTION column automatically generates the steps to add the product as identified.

• For Unknown Products, the steps needed is to either Upload SDS or Set Commodity

• For Products with a screened chemistry score of less than 20 or have an ingredient with a cas number in the MRSL, then the action is to replace the product.

For assistance, you may contact appsupport@adec-innovations.com.
